Infrared Reflective Pigments

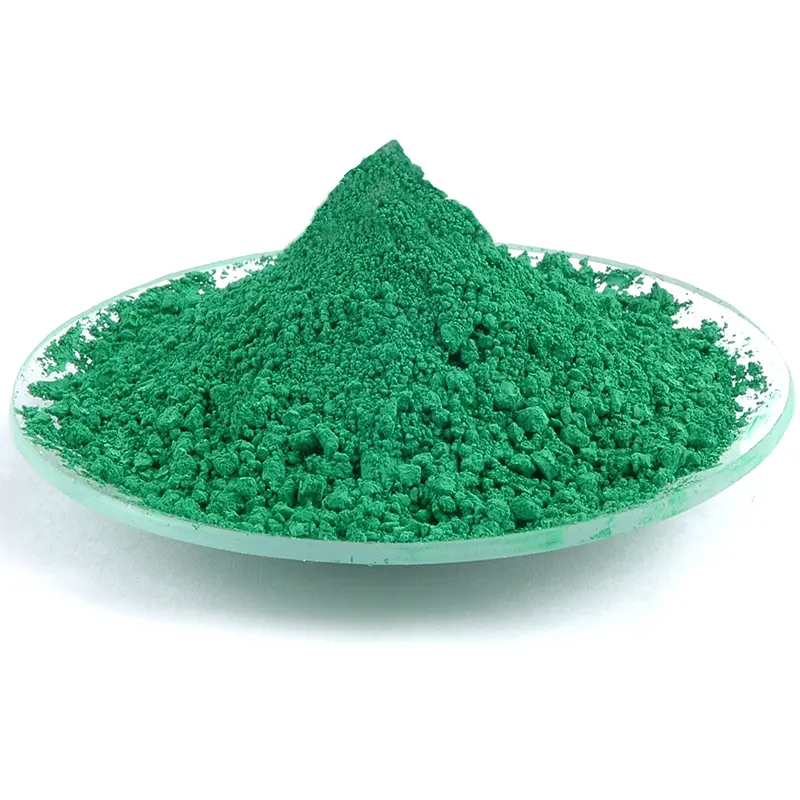

Cobalt Titanium Green


Chemical Name:Cobalt Titanium Green

Chemical Composition:Co-Ni-Zn-Ti-O

Chemical formula:(Co,Ni,Zn)2TiO4

C.I . No:Pigment Green50/P.G.50/ C.I.:77377

CAS No:68186-85-6

Appearance:Green powder

crystal form:Spinel type

Technological Index：

Model	B5003	B5010	B5012	B5026
Mean Particle Size (μm)≤	2.5	3.5	3.5	2.5
Heat Resistance（°C）≥	1000	1000	1000	1000
Light Fastness（Grade）	8	8	8	8
Weather Resistance（Grade）	5	5	5	5
Oil Absorption  G/100g	10-25	10-25	10-25	10-25
Acid And Alkali Resistance（Grade）	5	5	5	5
pH Value	6-9	6-9	6-9	6-9
Mass Tone
Tint Tone    1:4 TiO2

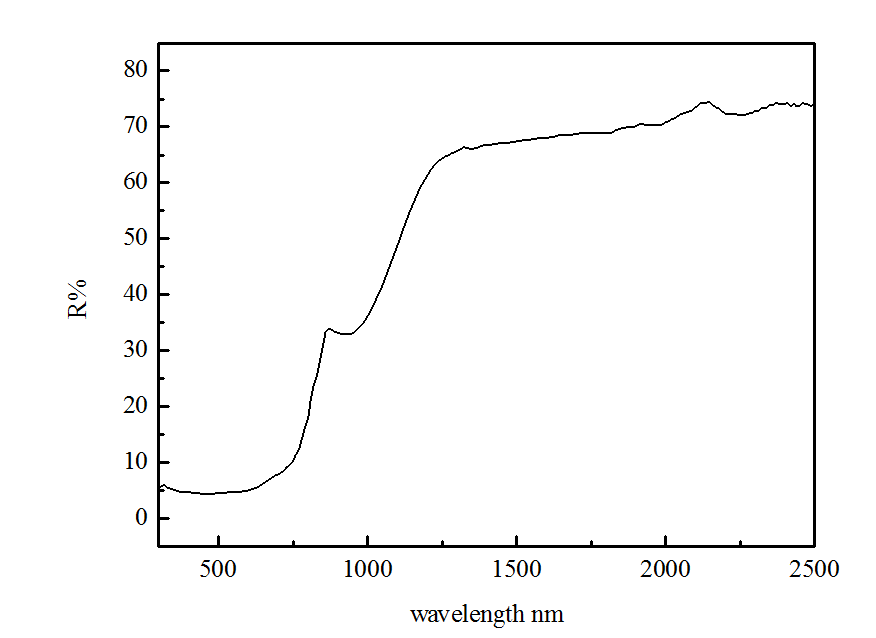

 Infrared reflectance drawing of Cobalt Titanium Green (P.G.50) powder TSR 32.3%

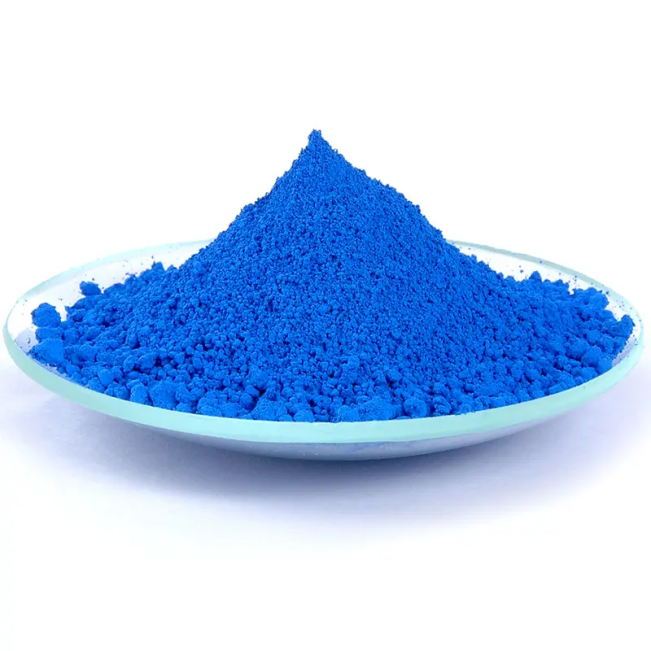

Cobalt Aluminate Blue


Chemical Name:Cobalt Aluminate Blue

Chemical Composition:Co-Al-O

Chemical formula:CoAl2O4

C.I . No:Pigment Blue 28/ P.B.28/ C.I.:77346

CAS No:1345-16-0

Appearance:Blue powder

crystal form:Spinel type

Technological Index：

Model	B2805	B2806	B2810
Mean Particle Size (μm)≤	2.5	2.5	2.5
Heat Resistance（°C）≥	1200	1200	1200
Light Fastness（Grade）	8	8	8
Weather Resistance（Grade）	5	5	5
Oil Absorption  G/100g	20-40	20-40	20-40
Acid And Alkali Resistance（Grade）	5	5	5
pH Value	6-9	6-9	6-9
Mass Tone
Tint Tone    1:4 TiO2

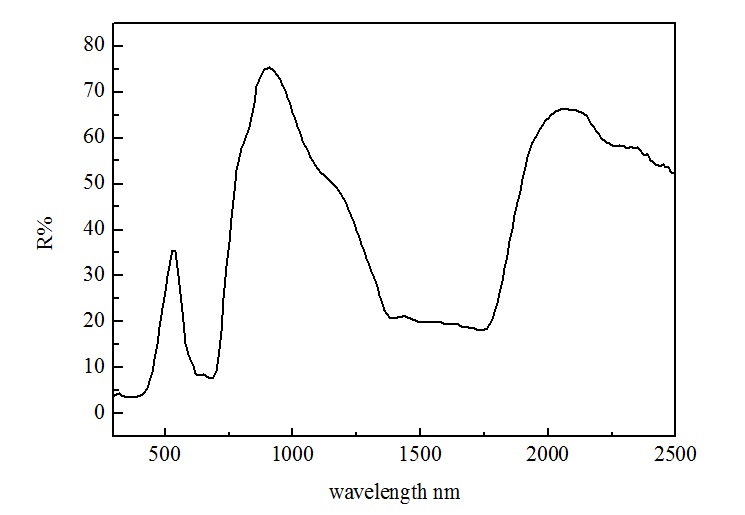

Infrared reflectance drawing of Cobalt Aluminate Blue (P.B.28) powder TSR 45%

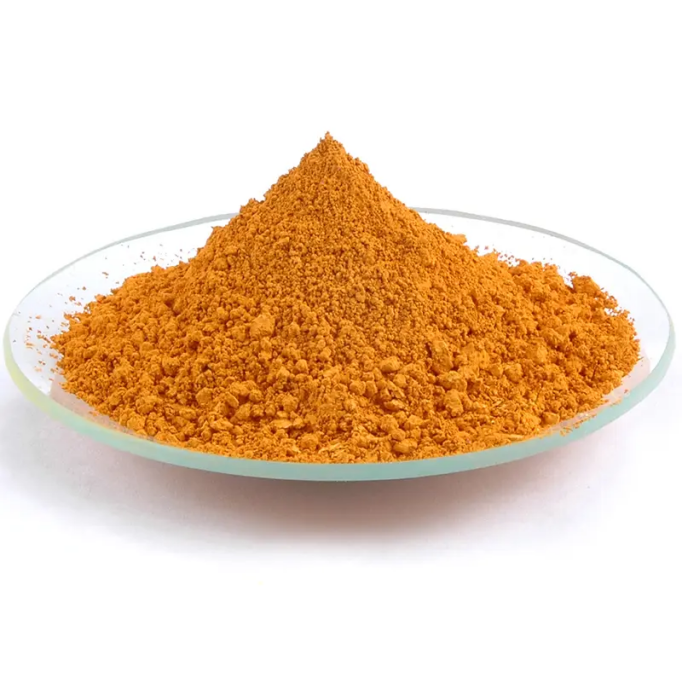

Titanium Chromium Brown


Chemical Name:Titanium Chromium Brown

Chemical Composition:Cr/Sb/Ti Oxide

Chemical formula:(Ti,Cr,Sb)O2

C.I . No:Pigment Brown 24/ P.Br.24/ C.I.:77310

CAS No:68186-90-3

Appearance:Yellowish brown powder

crystal form:Rutile Pattern

Technological Index：

Model	A2402	A2406	B2405	B2407
Mean Particle Size (μm)≤	2.5	2.5	2.0	2.0
Heat Resistance（°C）≥	1000	1000	1000	1000
Light Fastness（Grade）	8	8	8	8
Weather Resistance（Grade）	5	5	5	5
Oil Absorption  G/100g	10-25	10-25	10-25	10-25
Acid And Alkali Resistance（Grade）	5	5	5	5
pH Value	6-9	6-9	6-9	6-9
Mass Tone
Tint Tone    1:4 TiO2

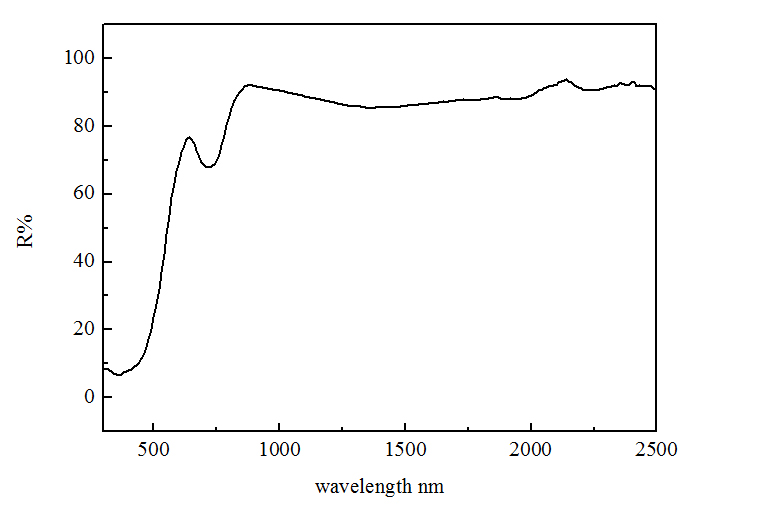

Infrared reflectance drawing of titanium chromium brown   (P.Br.24) powder TSR 64%

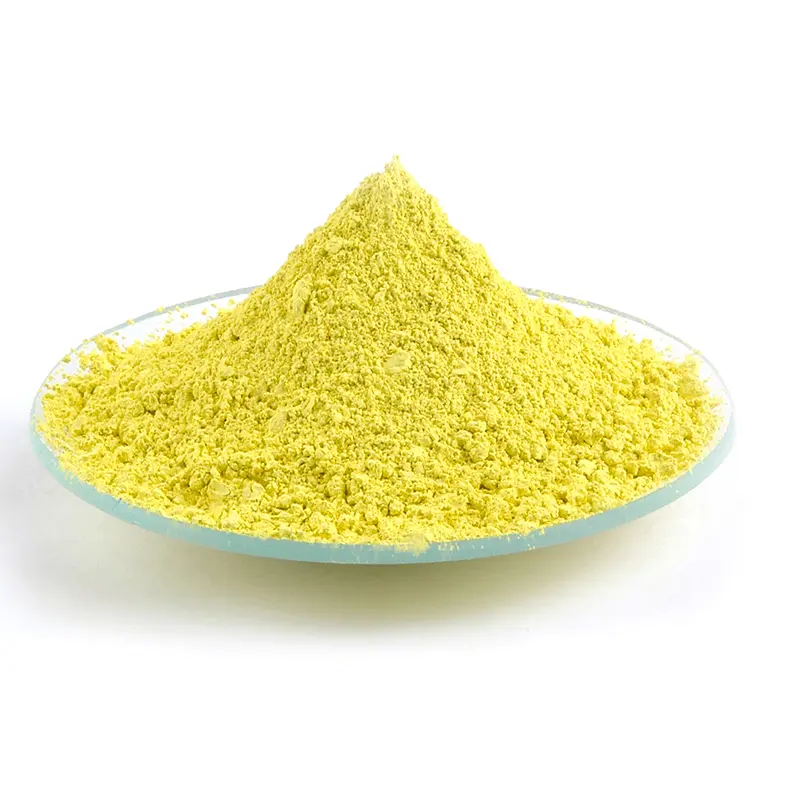

Titanium Nickel Yellow


Chemical Name:Titanium Nickel Yellow

Chemical Composition:Ni/Sb/Ti Oxide

Chemical formula:(Ti,Ni,Sb)O2

C.I . No:Pigment Yellow 53/P.Y.53/C.I.: 77788

CAS No:8007-18-9

Appearance:Greenish yellow powder

crystal form:Rutile Pattern

Technological Index：

Model	B5302	B5305	B5310
Mean Particle Size (μm)≤	2.5	2.5	2.5
Heat Resistance（°C）≥	1000	1000	1000
Light Fastness（Grade）	8	8	8
Weather Resistance（Grade）	5	5	5
Oil Absorption  G/100g	10-25	10-25	10-25
Acid And Alkali Resistance（Grade）	5	5	5
pH Value	6-9	6-9	6-9
Mass Tone
Tint Tone    1:4 TiO2

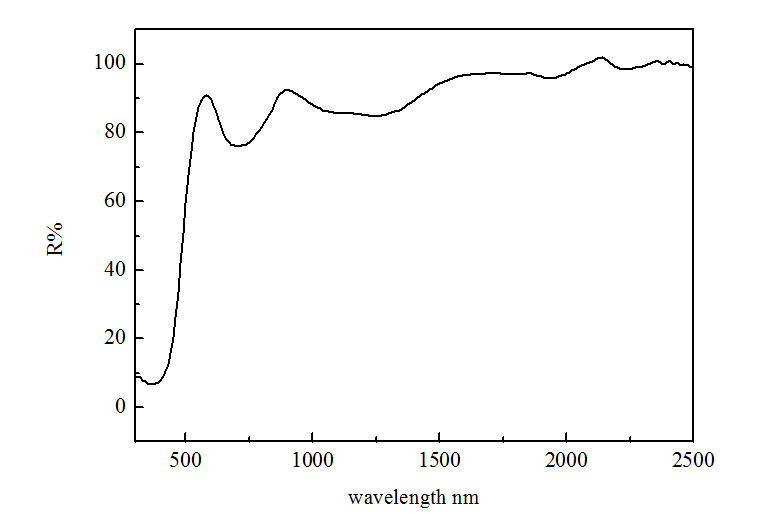

Infrared reflectance drawing of titanium nickel yellow (P.Y.53) powder TSR 73.4%

Chromium Iron Oxide Black


Chemical Name:Chromium Iron Oxide

Chemical Composition:Fe-Cr-O

Chemical formula:(Fe,Cr)2O3

C.I . No:Pigment Brown 29/ P.Br.29/ C.I.:77500

CAS No:12737-27-8

Appearance:Brown black powder

crystal form:Spinel type

Technological Index：

Model	A2901
Mean Particle Size (μm)≤	2.5
Heat Resistance（°C）≥	1000
Light Fastness（Grade）	8
Weather Resistance（Grade）	5
Oil Absorption  G/100g	10-25
Acid And Alkali Resistance（Grade）	5
pH Value	6-9
Mass Tone
Tint Tone    1:4 TiO2

Infrared reflectance drawing of Chromium Iron Oxide (P.Br.29) powder TSR 24%
